Click on the various options to see them added to the stainless steel dodger frame.

Aft Grab Rail Forward Grab Struts 1.25" Frame Upgrade * Side Grabs Aft Grab Struts *Does not show in the display below.

NOTE: The images displayed above are only representative of the frame that will actually be installed on your boat. These photos are only intended to demonstrate the various grab-rail options available as an upgrade to the standard model. This page is best viewed at a resolution of 1280x1024 or better. If you are having trouble fitting it on your screen try pressing F11 to toggle your browsers "full screen" mode.

The Iverson's Complete Dodger Frame Kit.
For those of you Do-It-Yourself enthusiasts who don't have the tools necessary to produce your own quality dodger frame or for those of you who's local canvas shop doesn't offer dodger frames with welded on grab rail sets, and 1-1/4" diameter stainless steel tubing. We are now offering our quality brand Iverson's dodger frames custom fabricated and shipped directly to you. Simply follow our "Getting Measurments" guide below to obtain the necessary dimensions for us to fabricate your order. Most orders placed are fabricated and shipped within two weeks.

The key to any well built dodger is in the foundation or structure. As an award winning and internationally recongnized dodger design company you can feel confident in knowing you are purchasing a quality product. With the Iverson's dodger frame kit you will receive quality components from which you can construct a durable dodger foundation.

Main Bow (optional, welded-on grab rail) Forward Bow Side Grab Rails (optional, not included) Aft Rigid Struts (optional, welded-on grab rails) Forward Rigid Struts (optional, welded-on grab rails) 12- heavy duty stainless steel eye ends 4- heavy duty stainless steel jaw slides 4- adjustable stainless steel deck hinges 2- fixed angle stainless steel deck hinges 2- take-apart stainless steel jaw slides

Please note: Some cutting of the stainless steel tubing may be required. We generally leave extra length on the tubing components of our dodger frame kits so you can achieve an accurate fit on your boat.

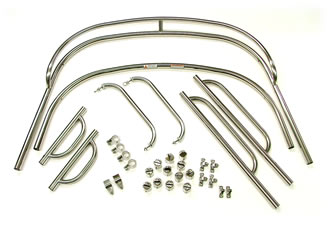

The Iverson's Dodger Frame Kit shown above includes all the following optional features: 1-1/4" dia. stainless steel frame and fittings, welded-on strut grabs, side grab rails, welded on aft strut grabs, welded-on forward strut grabs. Please be sure and indicate on your order form all options you would like. Standard frame does not include the grab rail options.

"Getting Measurements" guide:

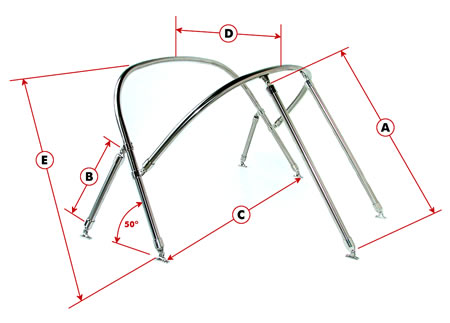

Please refer to this diagram to obtain all necessary measurements for us to fabricate your dodger frame.

NOTE:  All measurements can be approximate, it is best to measure longer by a few inches rather then shorter.  All components can be cut down to fit.  Measurements A and B are straight lengths of stainless tubing and can be cut down to fit.  Measurement C can vary within a few inches from side to side due to the amount of flex within the frame.  Measurement E can be cut down several inches to obtain appropriate height.  Measurement D can vary several inches as well because the forward bow is capable of being cut down if needed.

Contact us if you have any questions.
